Project Profiles > Shotcrete and DOT

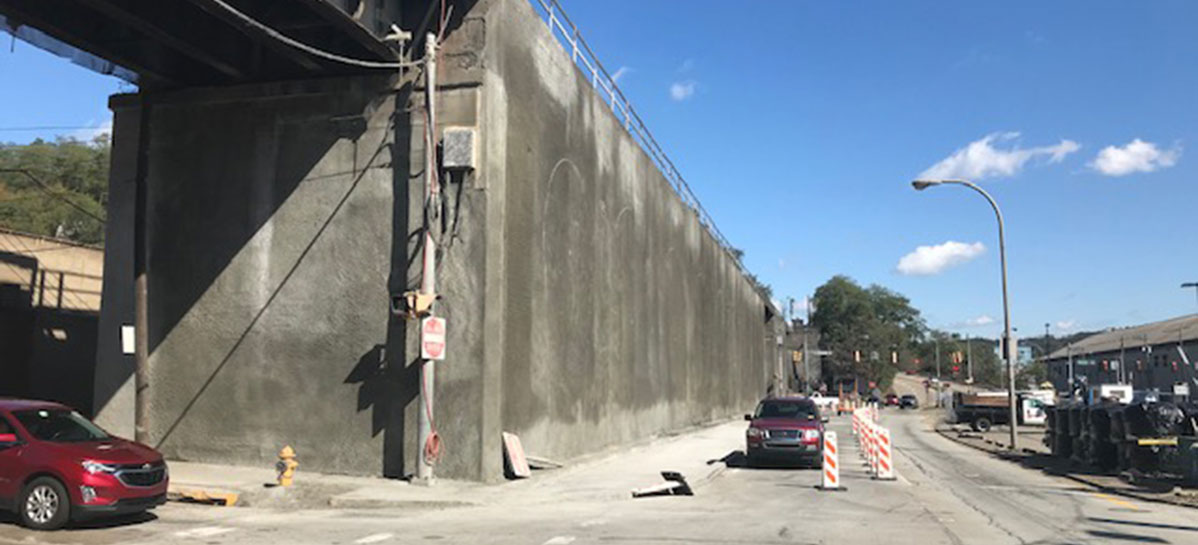

Braddock Viaduct

Originally a wood trestle built in 1897, the Braddock Viaduct was converted into a concrete bridge by the Union Railroad in 1914. In service for more than 100 years, concrete arches along four blocks of the Braddock Viaduct were rehabilitated with QUIKRETE® Shotcrete MS – Fiber Reinforced by Mosites Construction. The loose and deteriorated concrete was removed with a jackhammer to prepare the surface before shotcrete was applied from 4” thick to 2’ deep to make the repairs. Silos were used on the jobsite to consistently and efficiently mix, pump and apply the shotcrete 100 feet in the air.

QUIKRETE® Shotcrete MS – Fiber Reinforced is a single component Micro Silica enhanced repair material that achieves more than 9,000 PSI at 28 days, and features very low rebound and permeability characteristics.

QUIKRETE® Contact:
Email: projects@quikrete.com

Project Profile: Route 981 Bridge Rehabilitation

Location:
Pittsburgh, PA

Contractor: Mosites Construction

Start Date
May 2019

Completion Date
November 2019

Product(s):
